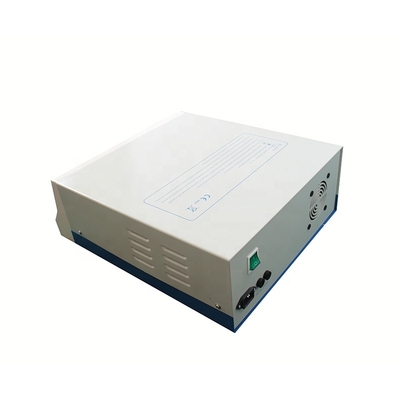

BC-50A High Frequency Electrosurgical Unit
basic surgical instruments
modern surgical instruments
Specifications:
1. Classification: Class I Type CF
2. Main Frequency: 625kHz±5% Modulate Frequency: 25kHz±5%
3. Working Mode: Intermittent and continuous working, 10s/30s
4. Output power and peak voltage:
5. Automatic Storage: The working mode and output power set during operation can be stored in the unit for 100 years.
6. High Frequency Leakage Current
The neutral electrode is isolated from the earth during the high frequency operation, the High Frequency Leakage Current <150mA.
7. Output Channels: Monopolar: 1 channel, Bipolar: 1 channel.
8. Output Setting and Indicating: The output is set by key pressing in different area according to different working mode, it is displayed digitally.
9. Output Indicating
Visual Indicator: Monopolar Cutting - Yellow / Coag - Blue / Bipo - Blue Audio Indicator: When the power is output, there is an audio indicator, the volume can be adjusted.
10. Error Indicating
Visual Indicator: The red indicator indicating the error and danger detected by self-detecting or monitoring (ALARM);
Audio Indicator: When alarming, there is an pulse audio indicating, this volume cannot be adjusted.
11. Output Control
Monopolar: Hand Control, Foot Control; Bipolar: Foot Control, Automatic Control.
12. Main Supply: AC220V±10% 50Hz±2%
13. Dimension: 410mm×320mm×155mm
14. Net Weight: 5 kg
15. Operation Condition:
Environment Temperature: +5°C~+40°C
Relative Humidity: ≤85%
16. Transport and Storage Condition:
Environment Temperature: -40°C~+50°C
Relative Humidity: ≤90%
Anhui Yingte Electronic Company Ltd. is a professional medical equioment in the development, production, marketing high-tech enterprises, located in Bengbu High/New Tech Industrial Development Zone.
Main products: BC-50 Series High Frequency Electrosurgical Unit, Bipolar Coagulation, LEEP Surgical System, Monopolar Electrode, Neutral Electrode(NE), Bipolar Electrode, Plexiglass Fumigator and Programmable Fumigator and so on. Among them BC-50 Series High Frequency Electrosurgical Unit was recongnized as "National New Product" by National Science Committee, ICBC, Minister of Labour and Social Security, National Bureau of Foreign Experts and General Administration of Quality Supervision, Inspection and Quarantine.
