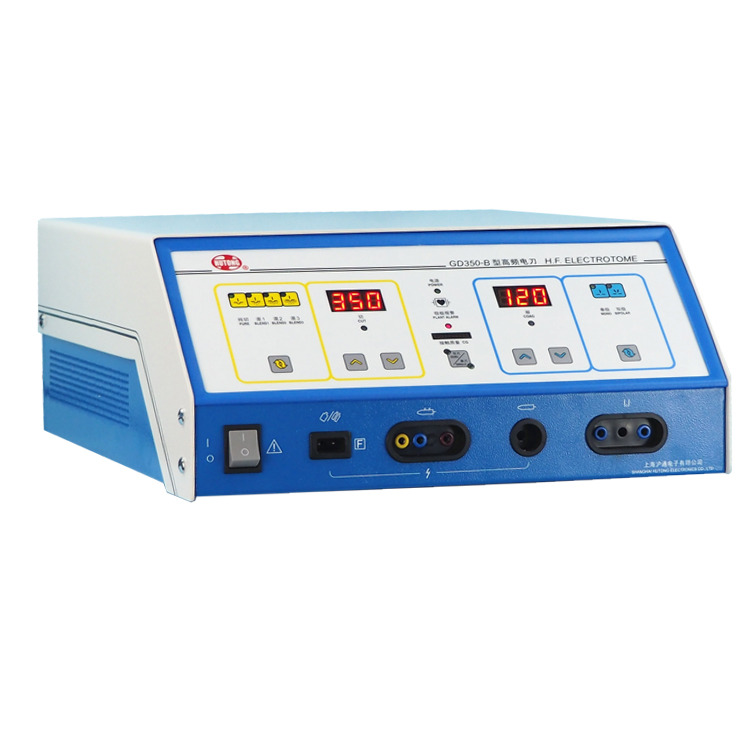

SHA made electrosurgical instruments bipolar cautery surgical cautery machine GD350-B
1, with CFDA certificate from 1996
2, more than 25 years of stable quality
3, 6000+ Chinese hospitals are using this generator.
Intelligent Device System
1.Separate power display and outlet socket for monopolar cut, monopolar coag and bipolar coag, each output can be individually configured.
2.The unit always remember the last setting when it turned off.
3.The ESU unit can be connected with laparoscope,thoracoscope and endoscope etc.
4. Protection against over-voltage and over-current.
5. Defibrillation protected. 6. Convection refrigeration without ventilating fans.
Characteristics
Microprocessor controlled, with the ability to automatically adjust, he is designed for general operations. With suitable accessories, he could be used in Laparostic/Thoracoscopic/LEEP surgeries.
Activation Option
Monopolar output could be activated by hand-switch or foot-switch,bipolar output actovated by foot-switch
REM(Return Electrode Monitoring)
Return electrode (for Monopolar) with quality monitoring system(REM). This REM system continually monitors patient impedance levels and deactivates the generator if less contacting between the patient/return electrode and skin is detected, at the same time with Audible and Visual Alarms.
Automatic self-test
When switch on the machine, it will start automatically self-test routine prior to operation. If alarms, there are different codes shows and refer to possible problems.
Monopolar Cut
Monopolar outlet, 3-pin (4mm) standard outlets. Different effects for cutting modes: pure cut for fast tissue dissection, while blend 1 to blend 3 with slight to strong coagulation effect.
Monopolar Coagulation
Monopolar coagulation mode provides 0-120W coagulation effects.
Bipolar
Bipolar coagulation provides contact coagulation without sparking from 0-50W.
Compatible with other Equipment
Optimum Smoke Evacuator
Application of Use
General surgery, Gynecology, Neurosurgery, Dermatology, Orthopedics, Plastic surgeries Cerebral surgery, Microsurgery, ENT surgery and etc.
| Working mode | Power range | Peak voltage | Load(Ω) | |
| Monopolar | Pure Cut | 0-350W | 2000V | 500 |
| Blend 1 | 0-250W | 3000V | 500 | |
| Blend 2 | 0-200W | 3300V | 500 | |
| Blend 3 | 0-120W | 3000V | 500 | |
| Standard Coag | 0-120W | 3000V | 500 | |
| Bipolar | Bipolar Coag | 0-50W | 300V | 100 |
| Operating Frequency | 512KHz | |||
| Environmental Conditions for Use | |
| Condition | Range |
| AC power | 220V±22V, 50Hz±1Hz, 3.5A |
| Power consumption | ≤800VA |
| Temperature | 5°C to 40°C |
| Relative humidity | ≤ 80%RH |
| Pressure | 86 KPa to 106 KPa |
| Environmental Conditions for Transport and Storage | |
| Condition | Range |
| Temperature | -40°C to 55°C |
| Relative humidity | ≤ 95% RH |
| Pressure | 50 KPa to 106 KPa |
| Dimension (L×W×H) | 45.5cm×38cm×18.5cm |
| Net Weight | 11KG (without accessories) |
| Gross Weight | 20KG( with two sets of out cartons) |
| Carton Size | 72cm*58cm*41cm |
| Accessories with generator | |
| Reusable ESU pencil (hand switch control) | 1 pc |
| Reusable ESU pencil (foot switch control) | 1 pc |
| Reusable bipolar forceps (20cm bayonet) | 1 pc |
| Reusable patient plate(stainless steel) | 1 pc |
| Power cable(3m) | 1 pc |
| Double foot-switch | 1 pc |
| Autoclavable pencil insulator | 1 pc |
